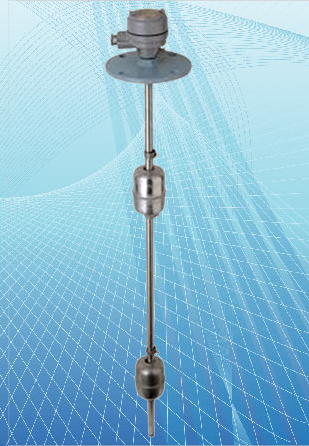

Stainless Steel Float Switch

Get a Price/Quote

Stainless Steel Float Switch Specification

Product Type
Vertical Switch

Material
Stainless Steel SS 304

Insulation Resistance
1000M ohms

Contact Resistance
150 Milliohm (m)

Size
Standard

Color
Any

Mounting Type
Surface Mount

Stainless Steel Float Switch Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
5000 Pieces Per Week

Delivery Time
3 Week

About Stainless Steel Float Switch

We have been setting benchmarks of success in the market as a prominent manufacturer and exporter of Stainless Steel Float Switch. This switch is manufactured at our sound production unit using high quality materials and components. This switch is suitable for potable water and chemical applications. Clients can obtain this switch in different specifications as per their requirements. We offer this Stainless Steel Float Switch at affordable prices.

Features:

Light in weight
Resistant to breakage
Easy to install

Specifications
Part No.		MFS Vt 01nc 300l
Contact Form		NC At The Bottom
Switching Voltage	Max. V	200 VDC Max.
Switching Current	Max. A	0.5a Max.
Carry Current	Max. A	1a Max.
Switching Capacity	Max. V/A	10w / Va Max.
Contact Resistance	Max. M	150milli Ohms
Lead Wire		1.5 Mtr. PVC, 0.5mm²
Reversible Switch Action		No
Operating Pressure	Max. Kg / Cm²	1.0
Operating Temperature	Deg.^oC	- 20^o + 150deg.C
Option For Material Body	A :	SS 304
Float	1 :	SS 316
Suitable Specific Gravity		0.75
Mounting Flange		Yes
