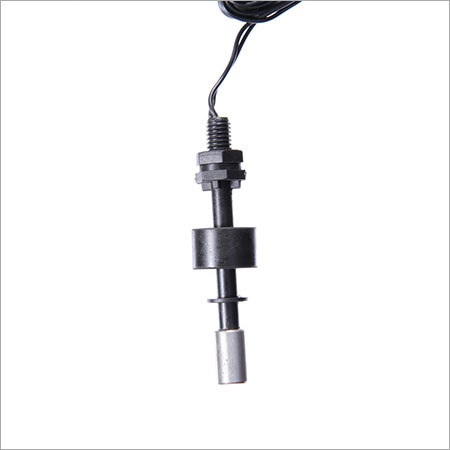

Magnetic Float Switches

Get a Price/Quote

Magnetic Float Switches Specification

Product Type
Vertical Switch

Material
Stainless Steel SS 304

Insulation Resistance
1000M ohms

Contact Resistance
150 Milliohm (m)

Size
Standard

Color
Multicolor

Current Rating
Surface Mount

Magnetic Float Switches Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
Delhi

Supply Ability
5000 Pieces Per Week

Delivery Time
3 Week

Sample Available
Yes

About Magnetic Float Switches

In the last 15 years, we have built a reputation in this domain by offering our clients a wide range of Magnetic Float Switches. Our switches are designed by using excellent quality material to ensure their excellent utility. Available according to the requirements of the customers, these switches are commonly used to detect the liquid level in a particular container. Moreover, our customers can demand these Magnetic Float Switches at the pocket friendly price

Features:

Sturdy construction
Corrosion resistant
Easy installation

Further Details:

part No.		Mfs Vt 01nc Wt
Contact Form		Nc Or No At The Bottom
Switching Voltage	Max. V	200 Vdc Max.
Switching Current	Max. A	0.5a Max.
Carry Current	Max. A	1a Max.
Switching Capacity	Max. V/A	10w / Va Max.
Contact Resistance	Max. M	150milli Ohms
Lead Wire		1.5 Mtr. Pvc, 0.5mm²
Reversible Switch Action		No
Operating Pressure Max. Kg / Cm²		1.0
Operating Temperature Deg.^oC		- 20^o + 80^o
Option For Material Body A		Nylon 6, G.F. 15%
Float 1		Polyurethane (PU)
Suitable Specific Gravity		0.75
Mounting Hole Dia	Mm	10.5
