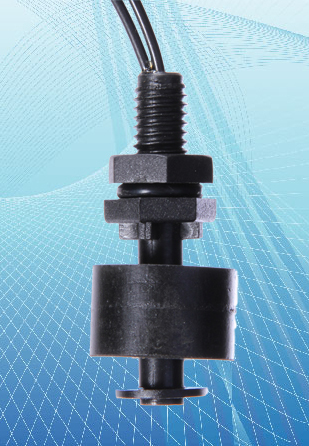

Plastic Vertical Float Switch

Product Description

We are a leading company specializing in the business of manufacturing and supplying Plastic Vertical Float Switch This switch is used in water and chemical tanks to measure the liquid level To comply with set industrial norms we use optimum quality materials and components to manufacture this switch Clients can obtain this Plastic Vertical Float Switch in different specifications from us as per their requirements Also we offer this switch at reasonable prices

Features

Easy to install

Highly efficient

Longer working life

Features

Lock Nut Mounting

Reversible Contact Function by Changing Float direction

Suitable for water gasolin oils etc

Available Either Normally Open Normally Close Change Over Contact Form

Specifications

Part No

Mfs Vt 01 Sh

Mfs Vt 02 Sh

Contactf orm

NoNcCo

NoNcCo

Switching Voltage

Max V

200 Vdc Max

240vacDc

Switching Current

Max A

05a Max

1a Max

Carry Current

Max A

1a Max

2a Max

Switching Capacity

Max Va

10wVa Max

50wVa Max

Contach Resistance

Max M

150mohms

150mohms

Lead Wire

15mtr Pvc 05mm2

15mtr Pvc 05mm2

Reversible Switch Action

Yes

Yes

Operating Pressure

Max Kgcm2

10

10

Operating Temperature

Deg C

20o  80o

20o  80o

Material

Body

Nylon 6 GF 15

Nylon 6 GF 15

Float

Polyurethene

Polyurethene

Suitable Specific Gravity

Mm

075

075

Mounting Hole Dia

105

105

Mounting

Vertical

Vertical
