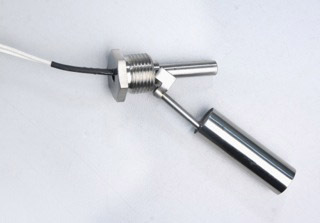

Mountable Stainless Steel Horizontal Switches

Mountable Stainless Steel Horizontal Switches

Product Details:

  • Material Stainless Steel SS 304
  • Insulation Resistance 1000M ohms
  • Supply Ability : 5000 Piece Per Week
1200-5000 INR/Piece
X

Price And Quantity

  • 1200-5000 INR/Piece
  • 2.20 - 5000.00 INR/Piece
  • 10 Piece

Product Specifications

  • Stainless Steel SS 304
  • 1000M ohms

Trade Information

  • 5000 Piece Per Week
  • 3 Week

Product Description



With an impressive record of growth in the industry, we have developed ourselves as the most promising manufacturer and exporter of a wide array of Mountable Stainless Steel Horizontal Switches. These switches are highly used in water and chemical tanks. To manufacture these switches, we use finest quality stainless steel. Available in different specifications, these Mountable Stainless Steel Horizontal Switches are highly demanded among clients. We offer these switches at reasonable prices.



Features:

  • Sturdy and durable
  • Rust proof in nature
  • Maintenance free



Specification



Material

Stainless Steel

Switching Voltage

200 VDC Max

Mounting Hole Dia

21.00MM

Switching Current

0.5A Max

Carry Current

1A Max

Switching Capacity

10W/VA Max

Contact Resistance

150 milli Ohms

Operating Pressure

1.0 Max. Kg/cm sq

Operating Temperature

-20 degree C to + 180 degree C

Suitable Specific Gravity

0.75

Mounting Position

Horizontal from Outside




Specifications

Part No.


Mfs Hz 01 Ss Ext

Mfs Hz 02 Ss Ext

Contact Form


Nc At Bottom

Nc At Bottom

Switching Voltage

Max. V

200 Vdc Max,

240 Vac / Dc

Switching Current

Max. A

0.5a Max.

1a Max.

Carry Current

Max. A

1a Max.

2a Max.

Switching Capacity

Max. Va

10w/Va Max.

50w / 70 Va Max.

Contact Resistance

Max. M

150m Ohms

150m Ohms

Lead Wire


1.5mtr Pvc, 0.5mm²

1.5mtr Pvc, 0.5mm²

Reversible Switch Action


Yes

Yes

Operating Pressure

Max. Kg/Cm²

1.0

1.0

Operating Temperature

Deg. oC

- 20o + 180o

- 20o + 180o

Material


Stainless Steel 316l

Stainless Steel 316l

Suitable Specific Gravity


0.75

0.75

Mounting Position


Horizontal From Inside

Horizontal From Inside

Mounting Hole Dia

Mm

10.5

10.5
